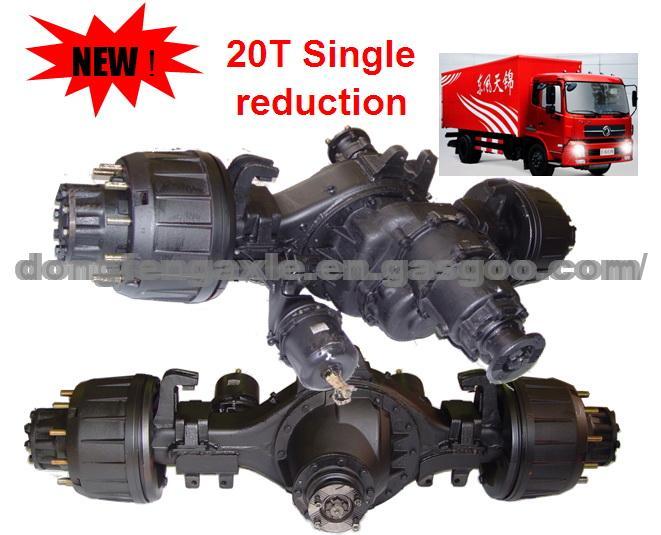

20T Dongeng DANA Tandem Driving Axle

20T Dongeng DANA Tandem Driving Axle
20T Dongeng DANA Tandem Driving Axle
Typical Clients:

Dongfeng truck

OEM No/Model:

24z33-00005/ 25z33-00005

Minimum Order:

5

Export Ratio:

11% - 20%

Quality Certificate:

TS16949,ISO 14001

PPM:

500

Main Raw Material:

45

Core Components :

Housing,drivehead,axle shaft,brake assy.

Place of Region:

China

Payment Terms:

L/C,T/T

Price Terms:

FOB

Delivery Port:

Shanghai

Market Type:

OE Market

Designed Capacity:

50000

Available Capacity:

20%

Current Export Market:

North America,South America,Western Europe,Eastern Europe,Eastern Asia,Southeast Asia,Mid East,Africa,Oceania

Product Details

Product Name:

20T Dongeng DANA Tandem Driving Axle

Product Description:

Axle load capacity: 26T
housing type: press welding
Max.output torque: 60000Nm
wheel track: 1860mm
Available ratio: 4.88,5,14,5,57,6.17,6.83
wheel bolt:  10-M20X1.5
Wheel bolt PCD:285.75mm
brake size: 410x220mm
brake torque: 2x19500
Chamber size: M16X1.5
Axle weight: 1560kg
Introduced from Nissan Diesel Company,  widely been used for bus and truck.
20T Dongeng DANA Tandem Driving Axle
20T Dongeng DANA Tandem Driving Axle
